Blum Aventos Lift Up Systems

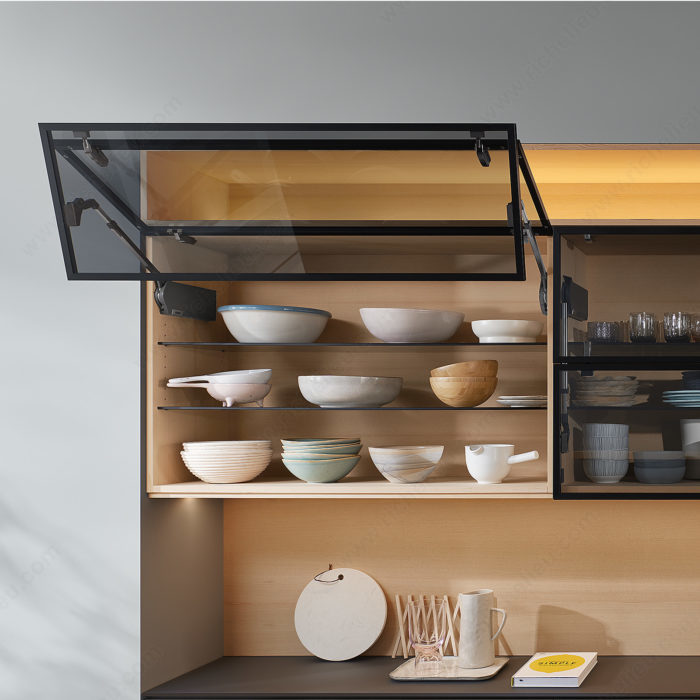

Aventos HF Top

AVENTOS HF creates many design options applications for a variety of wood doors, narrow or wide aluminum doors and / or combinations of each. The bi-fold lift system opens easily, remains in any desired position and closes silently and effortlessly thanks to BLUMOTION.
- Cabinet heights from 18 7/8″ to 42″.
- Cabinet widths up to 72″.

Aventos HK Top

AVENTOS HK Top seamlessly integrates with top wall cabinets, enhancing the furniture’s design aesthetic. Its compact size makes it a perfect fit for small cabinets, while its impressive strength also makes it suitable for larger wall cabinets. With an integrated opening angle stop, AVENTOS HK top offers precise control, allowing the front opening distance to be easily adjusted to suit individual preferences.
- Cabinet Heights from 10″ to 24″
- Cabinet Widths from up to 72″

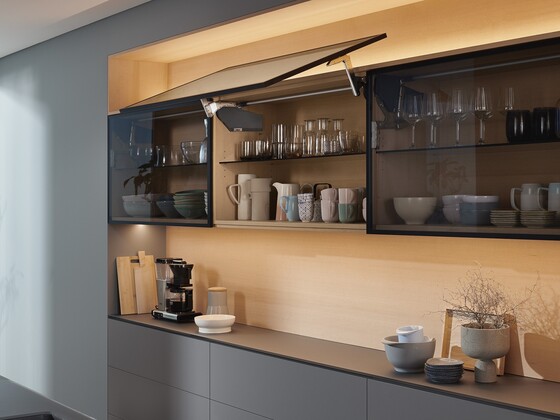

Aventos HS Top

AVENTOS HS provides comfort of motion that is sure to impress. Even heavy doors can be opened effortlessly, and thanks to BLUMOTION, come to a gentle halt. The variable stop ensures that the door always remains in the desired position, so the handle will always be within reach. AVENTOS HS lift systems open doors up and over the top of the cabinet. AVENTOS HS is ideal for large or heavy doors because they open effortlessly and close silently thanks to the BLUMOTION soft close action.
- Cabinet heights from 13 3/4″ to 31 1/2″.
- Cabinet widths up to 72″.

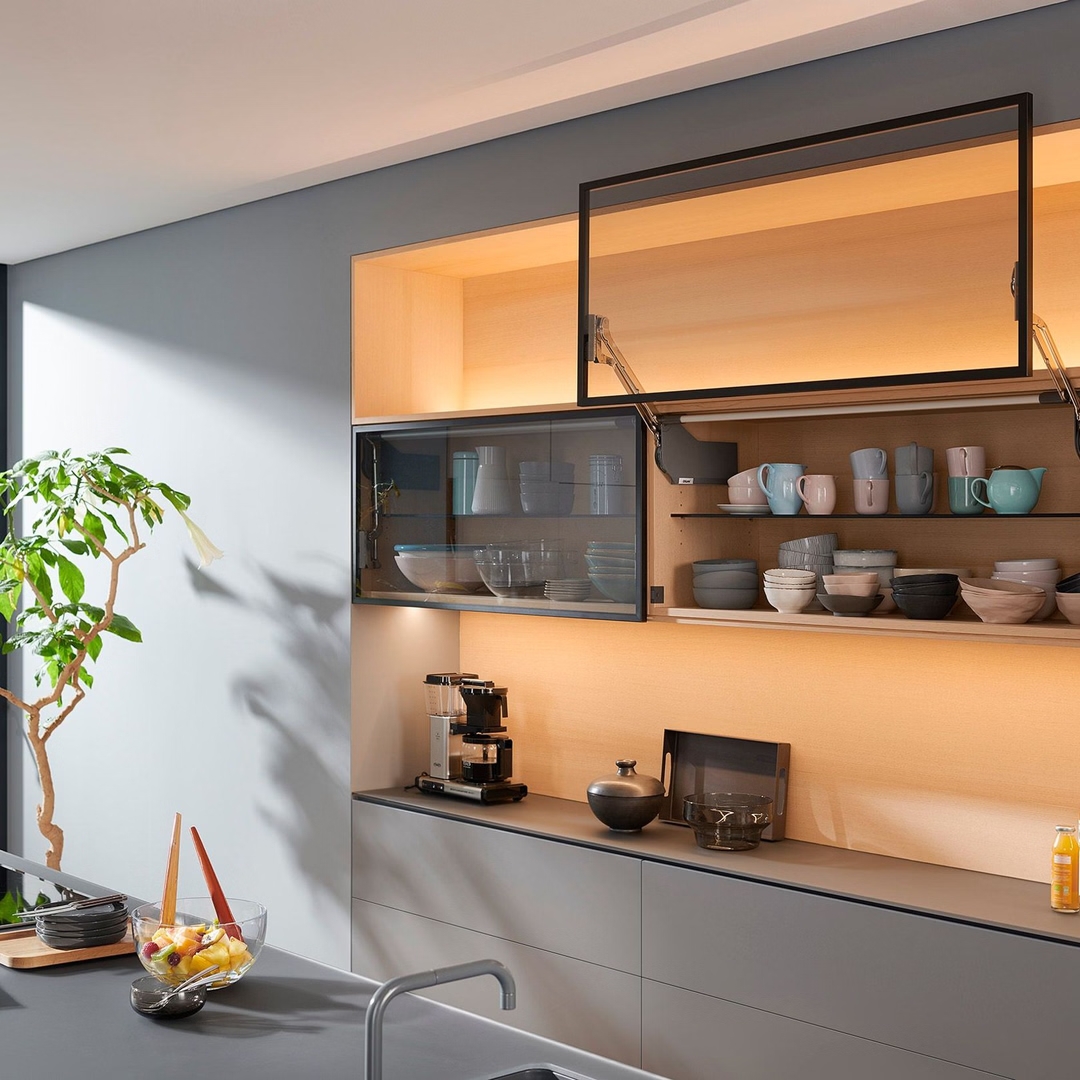

Aventos HL Top

With AVENTOS HL, the one-piece door front lifts up vertically and provides unhindered access to the interior. This lift system is the ideal solution for an appliance garage or wall cabinet. The door is easy to open and can be stopped at any desired position. It closes silently and effortlessly thanks to BLUMOTION.
- Cabinet heights from 11 13/16″ to 22 13/16″.
- Cabinet widths up to 72″.

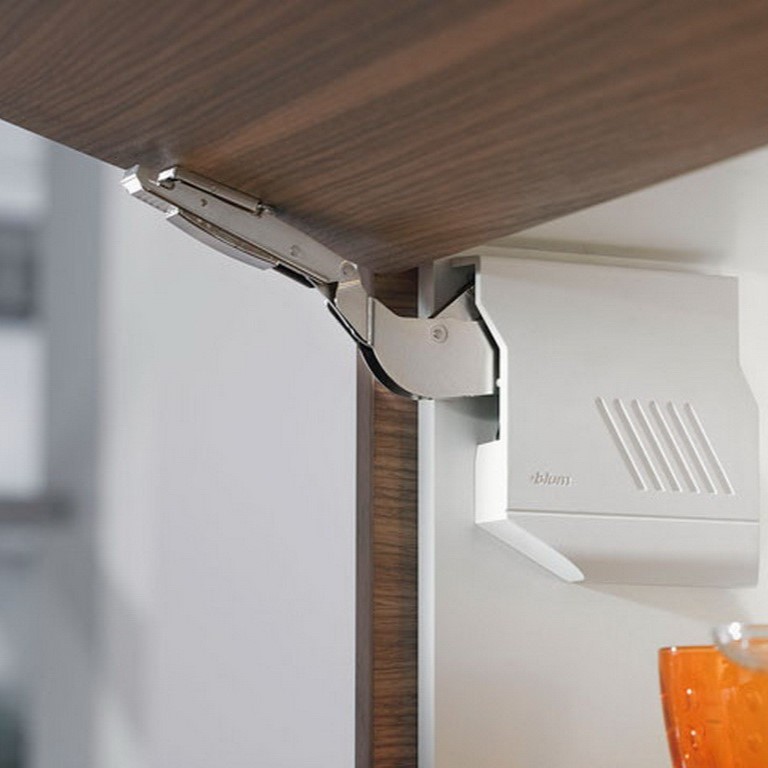

Aventos HK-S

Providing perfect motion for small cabinets with lift up doors is the goal of AVENTOS HK-S. It has been specially designed in terms of size and performance to provide the consumer a perfect experience. AVENTOS HK-S lift systems open doors just like AVENTOS HK. You can stop the door at any location and the doors still close silently. Ideal for smaller cabinets above refrigerators and pantries. AVENTOS HK-S opens easily, remains in any desired position and closes silently and effortlessly thanks to BLUMOTION.
- Cabinet heights from 7 3/8″ to 24″.
- Cabinet widths up to 72″.

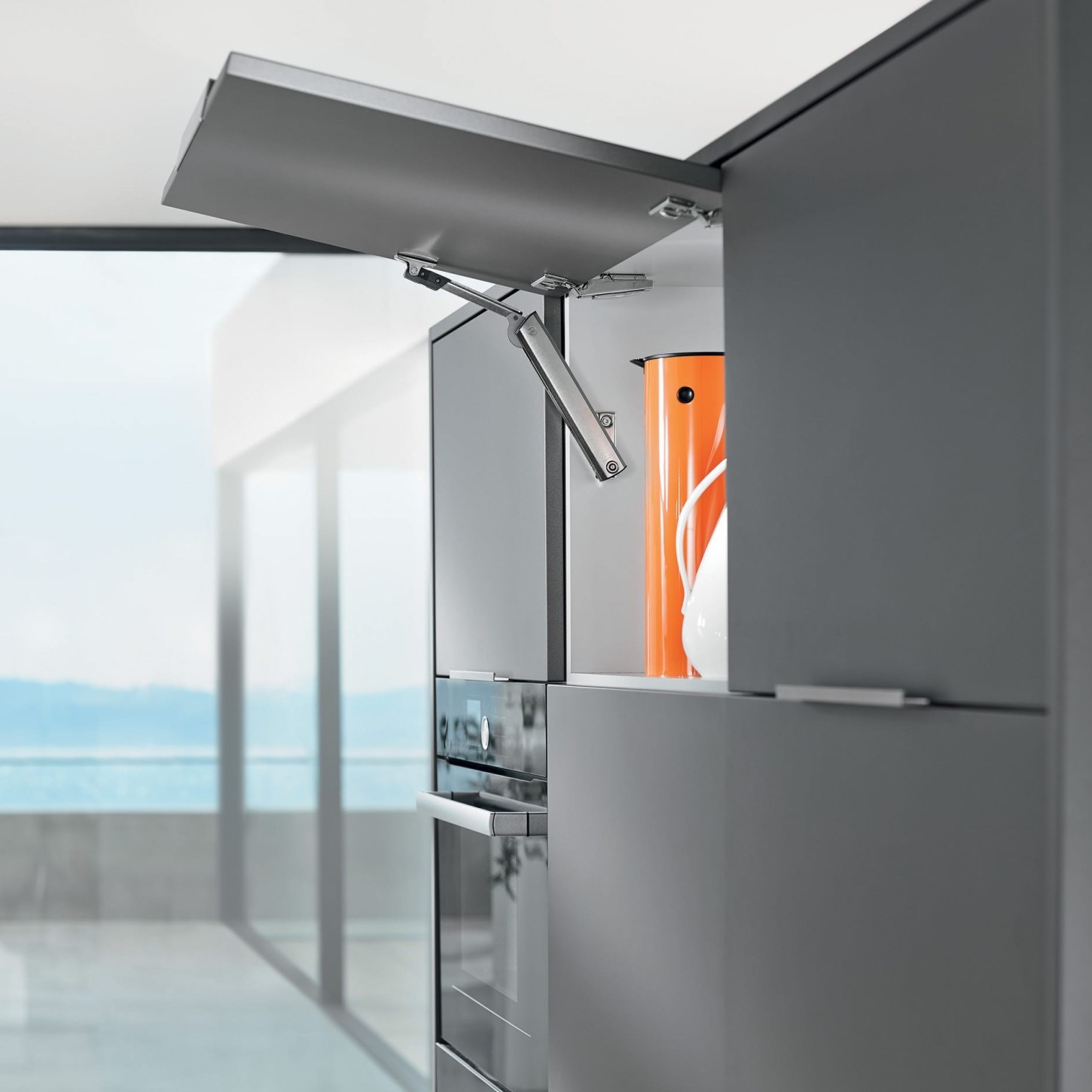

Aventos HK-XS

AVENTOS HK-XS is a smaller, cost-effective lift system for shallow wall cabinets, like those above refrigerators and pantries. Its variable stop feature allows the door to stay in any desired position, so it's always within reach. The lift mechanism can also be used on one or both sides of the cabinet, making it a flexible option for many applications.
- Easy adjustment. Simple and mostly tool-free assembly.
- Can be installed on either side (one unit) or on both sides (requires two units).
- Cabinet Heights from 9 3/8″ to 24″
- Cabinet Widths up to 72″
- Cabinet Depth at least 5″

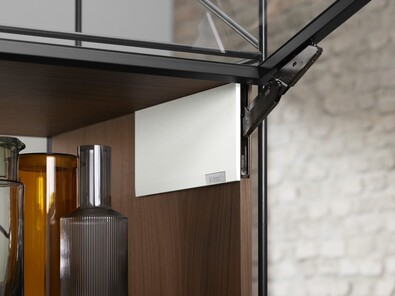

Aventos HKi

Due to its compact and narrow design, AVENTOS HKi can be fully integrated into the cabinet side panel. The lift system hardware blends seamlessly into the cabinet and enables sleek new design possibilities. With AVENTOS HKi, you have complete freedom to create high-quality cabinetry with an aesthetic edge that will impress your customers.
- Cabinet heights up to to 24″.
- Cabinet widths up to 72″.
- Applicable for medium and small wall cabinets. Cabinets with decorative moldings.
